Adding additional adjustment layers question


John BkNY

Member
Messages
6
Likes
1
I have these three layers in a group on top of a black Background layer:
Layer (3) - top. An Adjustment Layer - Brightness / Contrast
Layer (2) - middle. A mostly empty layer onto which I've cloned some touch-ups to
Layer (1) - bottom: "Pixel Image" with a linked layer mask

Now I want to adjust the "exposure" or light/dark level of one big section of Layer (1). I tried duplicating it and editing the linked layer mask to isolate the area I want to adjust, and then adding a new Adjustment Layer (Bright / Contrast) to lighten just the one section. That seemed to work BUT the cloned areas in Layer (2) changed their appearance. I tried duplicating the cloned layer and adding that to the new additional layers and the cloned areas got worse.

What should I do?


thebestcpu

Guru
Messages
2,939
Likes
2,710
Hi @John BkNY
It would help to see a screenshot of your Layer Panel. You have an excellent description of the first three Layers, yet then you are adding Layers, and it got a bit confusing to me (though I may be easily confused :) )

Here is what I can suggest without the detailed Layer Panel.
First, if you want an Adjustment Layer to affect a portion of the image below, use Layer Mask on the Adjustment Layer (not the pixel Layer below).
Second, if the specific area of Layer(1) that you want to adjust includes some or all of the same regions of the touch-up elements in Layer(2), then that new Adjustment Layer with Layer Mask should be placed above Layer (2).
Offhand, you would not need to duplicate Layer (1) with the approach I mentioned above.

If this seems off, I will wait until you can provide more details, e.g., a Layers Panel screenshot.
Just my suggestion, of course.
John Wheeler


John BkNY

Member
Messages
6
Likes
1
Hi @John BkNY
It would help to see a screenshot of your Layer Panel. You have an excellent description of the first three Layers, yet then you are adding Layers, and it got a bit confusing to me (though I may be easily confused :) )

Here is what I can suggest without the detailed Layer Panel.
First, if you want an Adjustment Layer to affect a portion of the image below, use Layer Mask on the Adjustment Layer (not the pixel Layer below).
Second, if the specific area of Layer(1) that you want to adjust includes some or all of the same regions of the touch-up elements in Layer(2), then that new Adjustment Layer with Layer Mask should be placed above Layer (2).
Offhand, you would not need to duplicate Layer (1) with the approach I mentioned above.

If this seems off, I will wait until you can provide more details, e.g., a Layers Panel screenshot.
Just my suggestion, of course.
John Wheeler
Thank you John! The contemporary internet has become a noisy and sometimes very dark place. Your quick and helpful reply reminded me of earlier times when I thought of the internet as an enormous repository of accessible knowledge. You are a credit to this community!


thebestcpu

Guru
Messages
2,939
Likes
2,710
Thank you John! The contemporary internet has become a noisy and sometimes very dark place. Your quick and helpful reply reminded me of earlier times when I thought of the internet as an enormous repository of accessible knowledge. You are a credit to this community!
Thanks and you're welcome @John BkNY
John Wheeler


John BkNY

Member
Messages
6
Likes
1
Thank you John! The contemporary internet has become a noisy and sometimes very dark place. Your quick and helpful reply reminded me of earlier times when I thought of the internet as an enormous repository of accessible knowledge. You are a credit to this community!

I meant to say thank you John @thebestcpu


John BkNY

Member
Messages
6
Likes
1
John -

Despite your clear and helpful message Photoshop still has me confused.
Here are a couple of questions that I've illustrated with some sample layers. My actual file has too many layers!
If you'd prefer I can post these questions to the whole group.
Are any of the below three layer groups (A,B,C) correct?

Starting at the bottom with "Layer A" - I selected an object in my image and created a layer mask from the selection, which automatically puts the mask in the same layer as the image. I then decide to add an adjustment layer, which goes above those two. If, as you said, I am instead to "use the Layer Mask on the Adjustment Layer" does that mean that the Layer Mask goes ABOVE the adjustment layer? How to get it there?

Or is "Layer B" more correct?

Layer C just has an image and an adjustment above it. If I want to add a Layer Mask, should I insert it in between the Image and the Adjustment Layer? How is that done?

LAYER SETUP 1.png


thebestcpu

Guru
Messages
2,939
Likes
2,710
John -

Despite your clear and helpful message Photoshop still has me confused.
Here are a couple of questions that I've illustrated with some sample layers. My actual file has too many layers!
If you'd prefer I can post these questions to the whole group.
Are any of the below three layer groups (A,B,C) correct?

Starting at the bottom with "Layer A" - I selected an object in my image and created a layer mask from the selection, which automatically puts the mask in the same layer as the image. I then decide to add an adjustment layer, which goes above those two. If, as you said, I am instead to "use the Layer Mask on the Adjustment Layer" does that mean that the Layer Mask goes ABOVE the adjustment layer? How to get it there?

Or is "Layer B" more correct?

Layer C just has an image and an adjustment above it. If I want to add a Layer Mask, should I insert it in between the Image and the Adjustment Layer? How is that done?

View attachment 142666
Hi @John BkNY

All forum members can see your above post, so you don't need to do anything else.

For my first response, let me show you two ways to approach what I believe would work for you. After that, if you need specific comments about the Layer Stack you have shared, ask.

First, if you are trying to adjust part of the image without affecting other parts of the image, here are the steps
- Make a selection around the part of the image you want to be adjusted
- Now add a Layers Adjustment Layer. What happens is that the selection you made is converted to a Layer Mask
- Now you use the sliders on the Layers Adjustment Layer, and it will affect the area

Here is an example of an image with a flower in the image, and I only want to adjust the flower in the image:

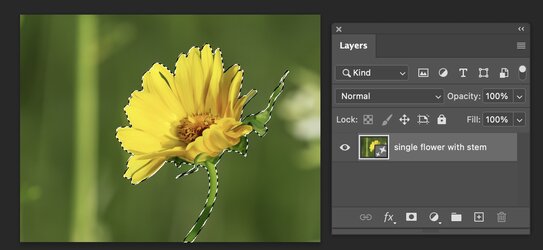

I select the image:

Screenshot 2024-02-02 at 4.52.53 PM.jpg

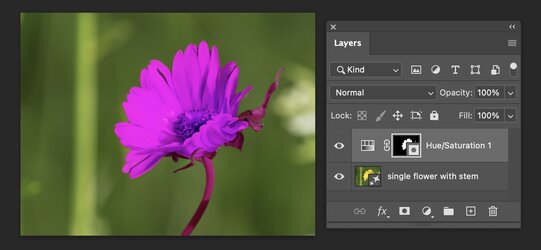

I added a Hue Saturation adjustment Layer, and the selected is converted into a Layer mask on the Layer.
I adjusted to change the color of the flower, and the rest of the image was left alone.


Screenshot 2024-02-02 at 4.54.57 PM.jpg


Now, if you have a separate image (e.g., a flower by itself) that you want to add into the image and then adjust the flower and not the background, here is what you do:
- As you have shown in your examples, the flower I am adding to the Layer Stack is surrounded by transparency. With this being the case, you do not need a Layer Mask. The transparency around the flower will allow the background image to show through.

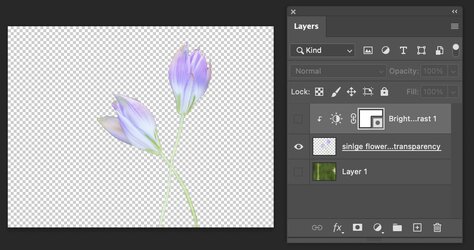

Here is an example of a flower with surrounding transparency that I want added to the scene:

Screenshot 2024-02-02 at 5.06.02 PM.jpg

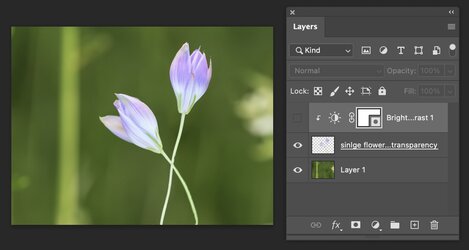

Here is background made visible with the flower that is surrounded by transparency:

Screenshot 2024-02-02 at 5.06.19 PM.jpg

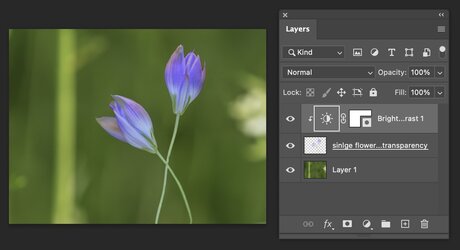

You then add an adjustment Layer on top of both Layers. To make sure that the adjustment Layer only affects the Layer directly below, you right-click on the Layer Thumbnail in the blank area on the right side of the Layer in the Layers panel. One of the options in the dropdown is "Create a Clipping Mask." This means the Adjustment Layer only affects the Layer directly below. I reduced the brightness of the flower this way and note that the background was left alone: I note that in one of your options you used a Clipping Mask.

Screenshot 2024-02-02 at 5.06.41 PM.jpg

I hope this helps, and if you still have questions, just ask away.
John Wheeler


John BkNY

Member
Messages
6
Likes
1
Thanks again John! Yes indeed you have been helpful! Photoshop is infinitely complicated....


thebestcpu

Guru
Messages
2,939
Likes
2,710
Thanks again John! Yes indeed you have been helpful! Photoshop is infinitely complicated....
You're welcome @John BkNY I agree about it complexity yet the good news you only need to learn enough tools that meet your needs to get good results. I continue to learn about PS as well :)
